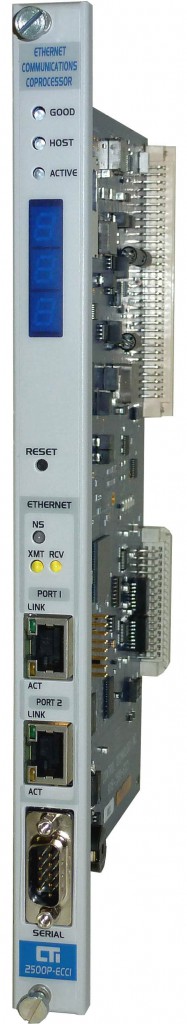

2500P-ECC1 ETHERNET COMMUNICATION COPROCESSOR
The 2500P-ECC1 Ethernet Communications Coprocessor provides state-of-the-art features and performance for Ethernet communication when using CTI 2500 Series® Processors. It uses a dynamic memory cache to give extremely quick response to queries from HMI systems, with no dependence on CPU scan time. It also provides a fully configurable interface for setting up Modbus-TCP, and CAMP client/server communications. Most importantly, it features a completely new facility which provides peer-peer network communications between PLCs using a new “report on change” protocol. NOTE: 2500P-ECC1 requires a CTI 2500 Series® Processor for operation.
- Product bulletin
- Guide for Converting Ethernet Applications from 2572 / 2572-A/ 2572-B to 2500P-ECC1
- Quick Start Guide
- User Manual
- Product Revision History
- More Information
- Firmware update
- Firmware Revision History
- 2500P-ECC1 Configuration Program
- 2500P-ECC1 Configuration Program Revision History
- 2500P-ECC1 Presentation (Diaporama Powerpoint)
- Application Note: Communicating between CTI 2500 Series® PLCs and Simatic S7® using 2500P-ECC1 and Modbus/TCP Protocol
- Introduction
- Network Data Exchange protocol
- Using Network Data Exchange to Transfer Data between two PLCs
