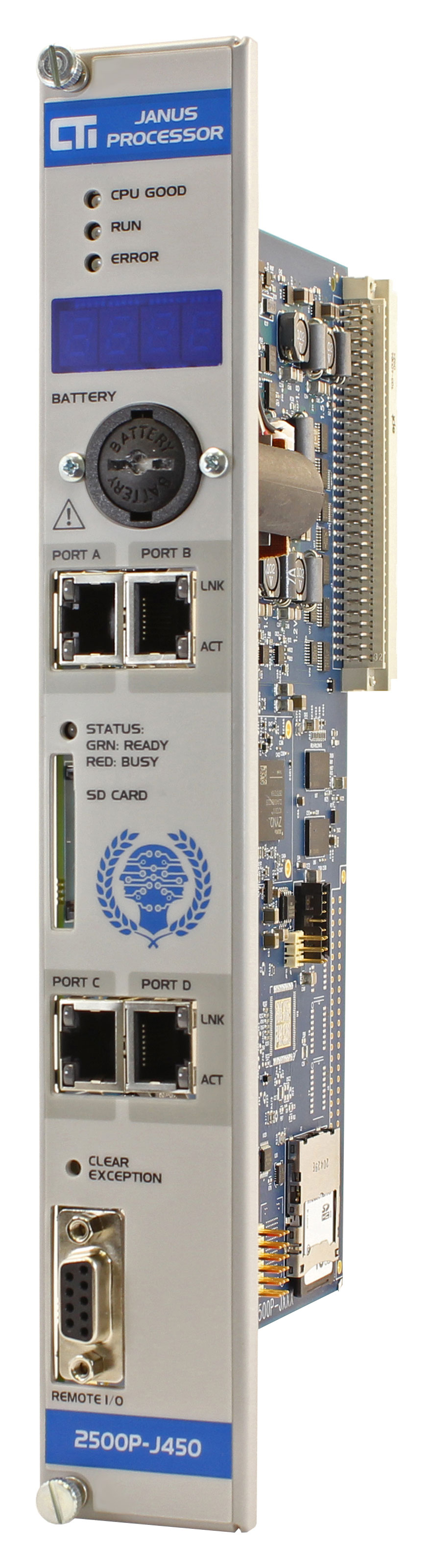

2500P-J450 CPU WITH 2MB PROJECT MEMORY

2500P-J450 Janus PAC with 2MB Project MemoryOur new family of Janus PACs will bring completely new capabilities to the CTI 2500 Series® System.  Designed to work seamlessly with existing Siemens/TI 505® and CTI 2500 Series® Systems as well as to look to the future with state-of-the-art programming, protocols, and capabilities, including direct access to the Industrial Internet of Things (IIoT) using MQTT, these PACs are very fast, agile and optimized for quick, easy and cost-effective communications. Our new Janus PAC includes integrated drivers to a wide variety of protocols, allowing communications with best-in-class I/O, drives, and HMI/SCADA no  matter the manufacturer. It also utilizes CTI’s budget- and user-friendly new Janus Workbench Software programming package that includes all IEC programming languages. Initially available in our Classic size, this family now includes fully featured Compact versions as well.





  • New ARM-based microprocessor & faster memory (Up to 10x execution speed compared to 2500 Series® CPUs)
  • Four Ethernet ports for maximum flexibility in operating SCADA and I/O networks
  • Up to four IP addresses are supported, with each on a different subnet
  • Backup battery or (possible) backup via POE
  • Internal and external SD cards
  • Internal card contains entire operating system, firmware, user program, configuration, user data (NOTE: This allows rapid replacement of a failed CPU simply by transferring the old SD card into the replacement unit)
  • External card for file exchange, firmware update, initial IP address assignment
  • Built-in Remote I/O and Profibus for compatibility with existing applications
  • Front accessible battery
  • Programmed using  Janus Workbench Software, JSoft, IEC-61131 Standards-based which allows use of RLL, FBD, ST, SFC and IL languages
  • Tag-based programming model
  • 505 instruction library included
  • Similarity to CodeSys, Step7, and RSLogix means easier learning and better availability of System Integrators for projects
  • Web-based visualization of graphics pages designed in JSoft
  • Extensive built-in communications capabilities:
    • High speed DataCache connection to existing CTI Cxxx processors
    • Optimized peer-to-peer communications with other JANUS Series processors and 2500P-ACP1 /2500P-ECC1 coprocessors (Network Data Exchange)
    • CAMP Client for communicating with all CTI Ethernet products (2572, 505-CP2572, 2572-A, 2572-B, 2500P-ECC1, 2500 Series® CPUs)
    • CAMP Server for HMI/SCADA access
    • Open Modbus Client and Server
    • Ethernet/IP Scanner, Adapter, Tag Client, Tag Server
    • MQTT client for direct access to the IIoT
    • OPC-UA server (near future)
    • PROFINET controller and device (future)







Programming Software
2500P-WB-USB CTI Janus Workbench Programming Software Integrated Development Environment — “JSoft”







MIGRATING APPLICATION FROM 2500 SERIES WORKSHOP® TO JANUS WORKBENCH®

With decades of experience with Simatic 505®/ CTI technology as well as IEC-61131-3 environment Napa engineers can process your program migration safely and efficiently.

Read more about Migrating application from 2500 Series WorkShop® to JANUS Workbench®
